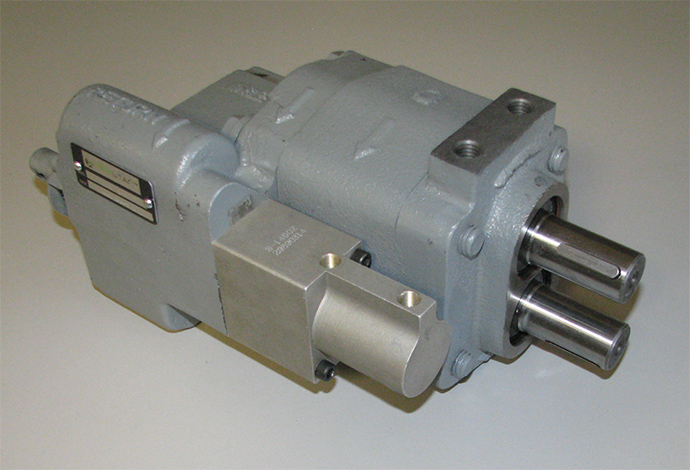

G series remote mount dump pump. P/N G101AS. Recommended choice for pumps used to operate dump boxes.2000 PSI with load check.
15 GPM at 1000 RPM, 29 GPM at 1800 RPM, 37 GPM at 2400 RPM.
Can be used with 2 or 3 line hookup.
1 inch drive shafts. Shaft rotation marked on pump housing (connect PTO drive shaft to match pump rotation marking).
Heavy duty roller bearing design.
Pressure balanced thrust plates.
Air controlled spool valve with 1/8 inch pipe thread ports. Can also be supplied with a cable controlled valve, call us to order as model G101.
To use with the 9553SF drive shaft kit see yoke p/n 2-4-473.
If using the 221 series PTO to operate this pump do not exceed a PTO shaft speed of 1650 RPM, intermittent duty only.
